ZEISS DotScan
Optikai szenzor a szabad formájú felületekhezA kromatikus fehérfény szenzorok lehetővé teszik a munkadarab topográfiájának érintésmentes rögzítését. Ezek általában akkor használatosak, amikor az érzékeny, tükröző vagy alacsony kontrasztú felületek miatt más szenzorok használata bonyolult, vagy nem lehetséges.
Jellemzők
![ZEISS DotScan: Optikai szenzor a szabad formájú felületekhez]({"xsmall":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","small":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","medium":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","large":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xlarge":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","xxlarge":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg","max":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-01.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-01.jpg"} "ZEISS DotScan: Optikai szenzor a szabad formájú felületekhez")

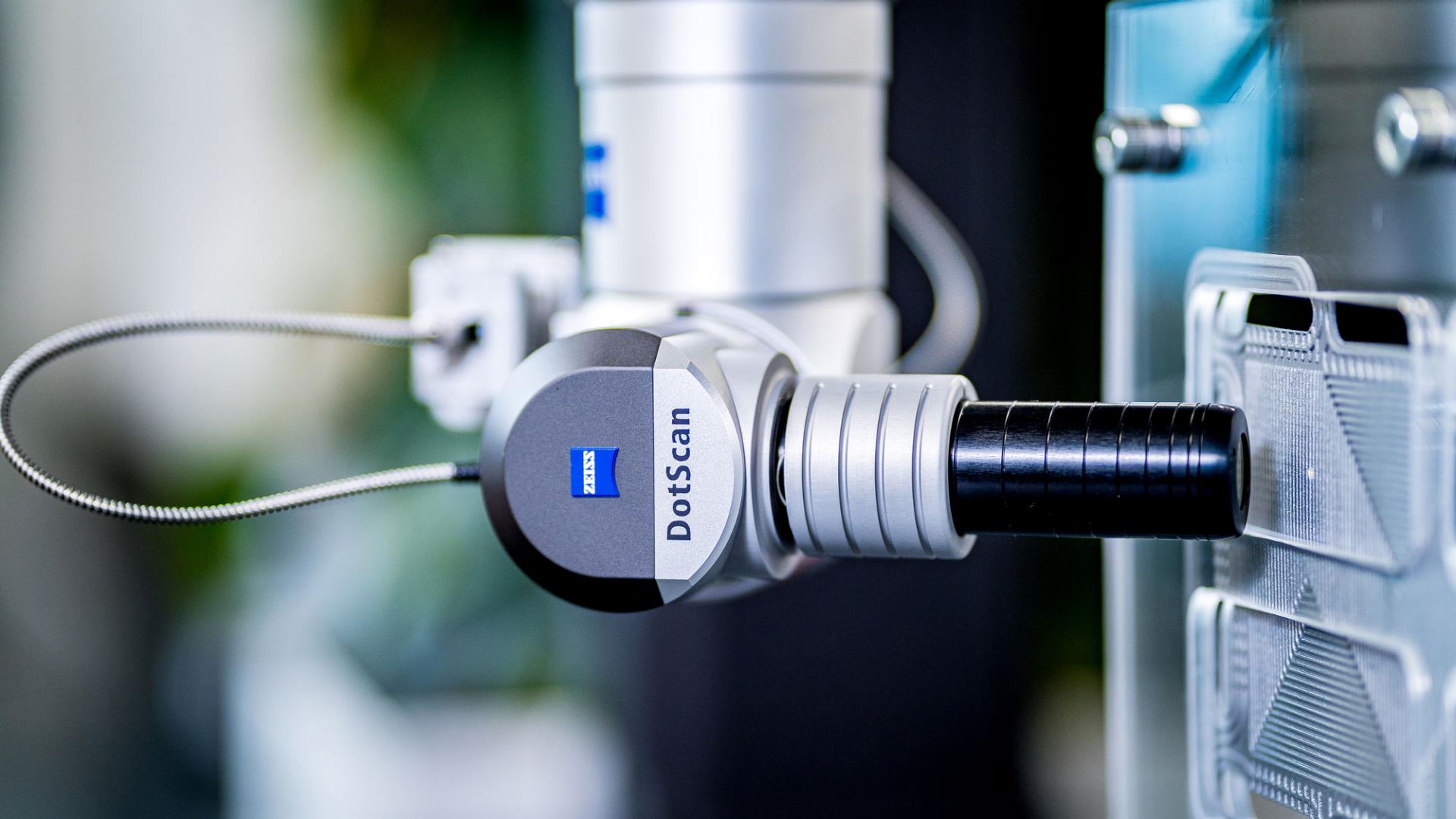

A ZEISS DotScan tökéletes választás a szabad formájú felületek, vagy akár a mikroszerkezetek vizsgálatához is. A kromatikus fehérfény szenzorok – így a ZEISS DotScan – tökéletes választást jelentenek akkor, amikor a tapintók vagy a kamera akapú szenzorok már elérik korlátjaikat az érzékeny, lágy, tükröző vagy alacsony kontrasztú felületeken.

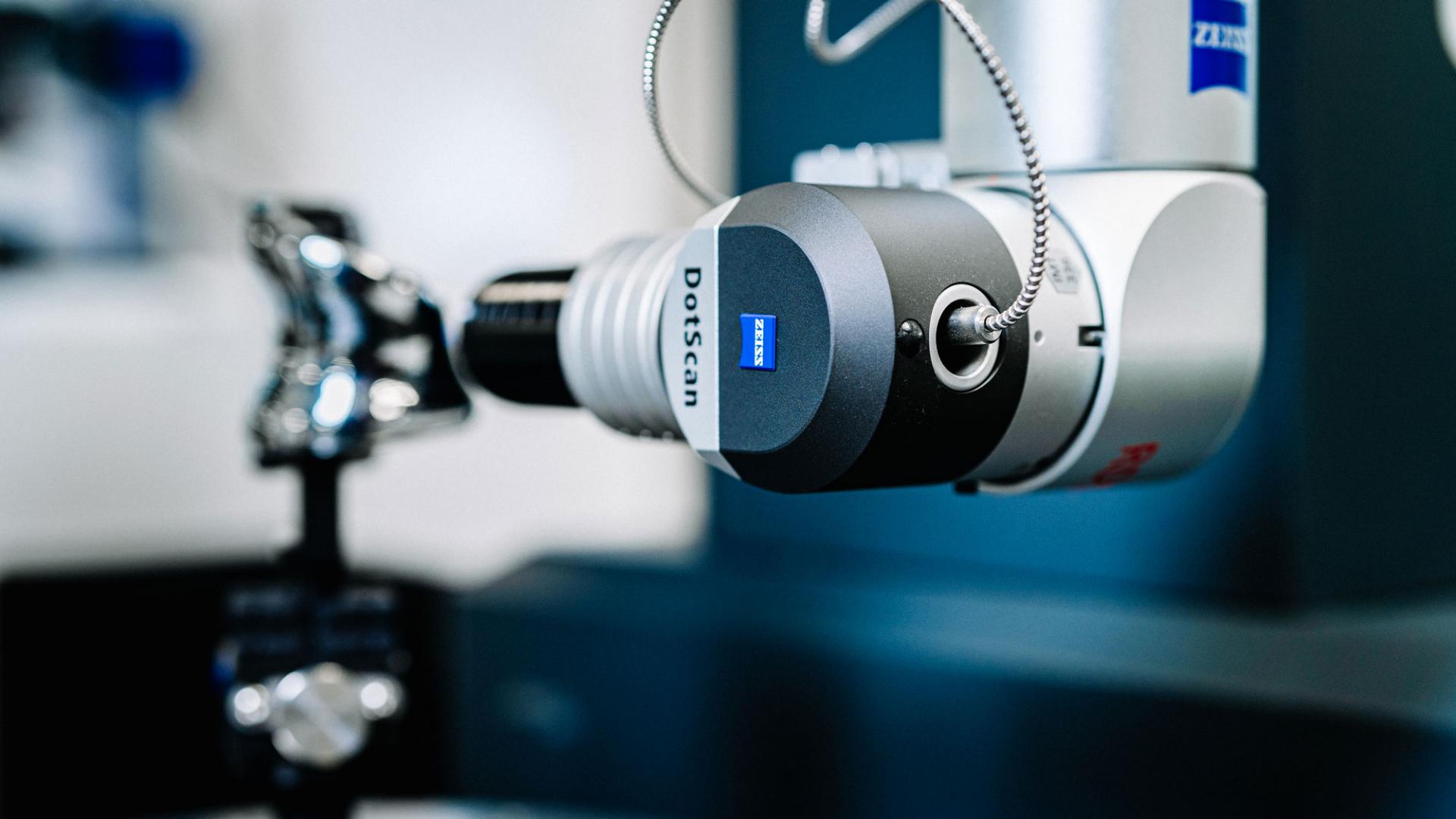

A ZEISS DotScan használatával az olyan erősen tükröző felületek is, mint például a térdprotézisek fém részei festékspray használata nélkül vizsgálhatók. Emellett lehetőség nyílik az átlátszó lakkozott felületek megkülönböztetésére az alattuk lévő többi fém rétegtől.
![ZEISS DotScan: Optikai szenzor a szabad formájú felületekhez]({"xsmall":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.100.56.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","small":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.360.203.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","medium":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.768.432.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","large":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1024.576.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xlarge":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1280.720.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","xxlarge":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1440.810.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg","max":"https://www.zeiss.hu/content/dam/iqs/r/systems/cmm/probes-and-sensors/optical-sensors/dotscan/zeiss-dot-scan-sensor-02.jpg/_jcr_content/renditions/original.image_file.1920.1080.0,104,2000,1229.file/zeiss-dot-scan-sensor-02.jpg"} "ZEISS DotScan: Optikai szenzor a szabad formájú felületekhez")
Rugalmas felhasználás
A ZEISS DotScan háromféle méretben érhető el, három különböző mérési tartományhoz: 10, 3 és 1 mm. A szenzor teljesen automatikusan cserélhető egyéb taktilis vagy optikai szenzorra akár egy CNC futtatáson belül is. 2,5 fokos lépéseivel a forgatható fej úgy állítja be a ZEISS DotScan-t, hogy az merőleges legyen a vizsgált alkatrész felületére.
És mivel a ZEISS DotScan 1 mm maximális mérési szöge +/- 30 fok, így még az erősebben ívelt alkatrészek is beszkennelhetők. A szenzor működési módjainak köszönhetően a legkülönbözőbb anyagok minden oldalról gond nélkül letapogathatók. Körasztallal használva még 4 tengelyes mérési feladatokhoz is alkalmas.
