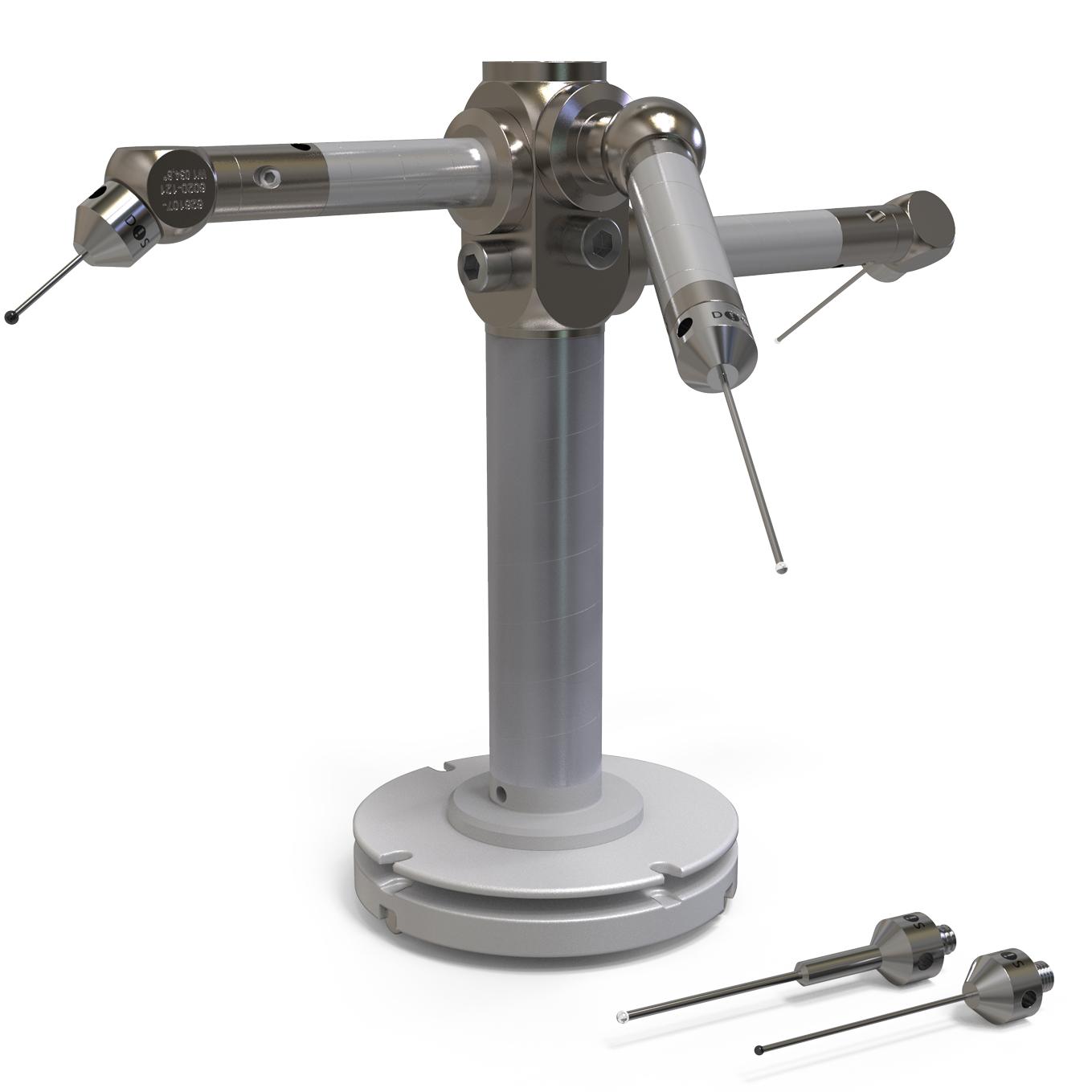

Diamond!Scan® a ZEISS-től
A világ legkeményebb anyagábólA ZEISS Diamond!Scan tapintókat kifejezetten ultrakemény kerámiafelületeken vagy rendkívül puha alumíniumötvözeteken végzett mérésekhez fejlesztettük ki. Alapanyaguk a világ legkeményebb anyaga.
Jellemzők
ZEISS Diamond!Scan
Termékkínálatunk
![]({"xsmall":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.100.67.1,0,1920,1279.file/solid-diamond-scan.jpg","small":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.360.240.1,0,1920,1279.file/solid-diamond-scan.jpg","medium":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.768.512.1,0,1920,1279.file/solid-diamond-scan.jpg","large":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1024.683.1,0,1920,1279.file/solid-diamond-scan.jpg","xlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1280.853.1,0,1920,1279.file/solid-diamond-scan.jpg","xxlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1440.960.1,0,1920,1279.file/solid-diamond-scan.jpg","max":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/solid-diamond-scan.jpg/_jcr_content/renditions/original.image_file.1919.1279.1,0,1920,1279.file/solid-diamond-scan.jpg"})

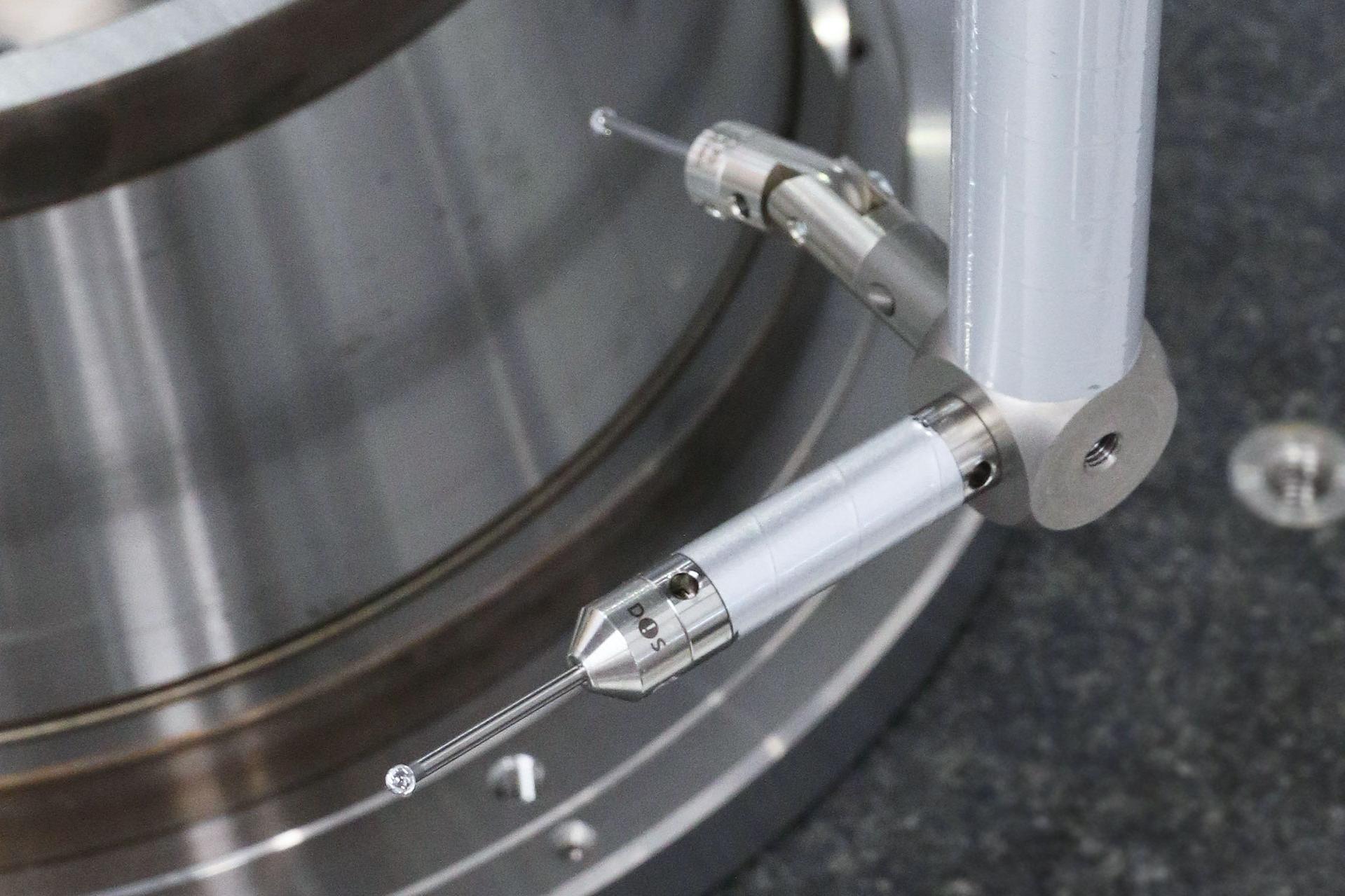

Tömör gyémánt
A legnehezebb mérési feladatokhozA ZEISS Diamond!Scan egy tömör gyémántgömbbel ellátott tapintó. Rendkívül tartós, és még a legkeményebb anyagok vizsgálatakor sem kopik el. A tömör gyémánt tapintókra még erősen koncentrált terhelésű, egy ponttal történő mérések esetén is számíthat. A fentieket összegezve: tömör gyémánt tapintóinkat határozottan ajánljuk a legnehezebb mérési feladatok elvégzéséhez. A gyémánt tapintók DK 1, DK 2 és DK 3 átmérőjű verziókban elérhetőek.
![]({"xsmall":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/diamond-coated-stylus.jpg","small":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/diamond-coated-stylus.jpg","medium":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/diamond-coated-stylus.jpg","large":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/diamond-coated-stylus.jpg","xlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/diamond-coated-stylus.jpg","xxlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/diamond-coated-stylus.jpg","max":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/diamond-coated-stylus.jpg/_jcr_content/renditions/original./diamond-coated-stylus.jpg"})

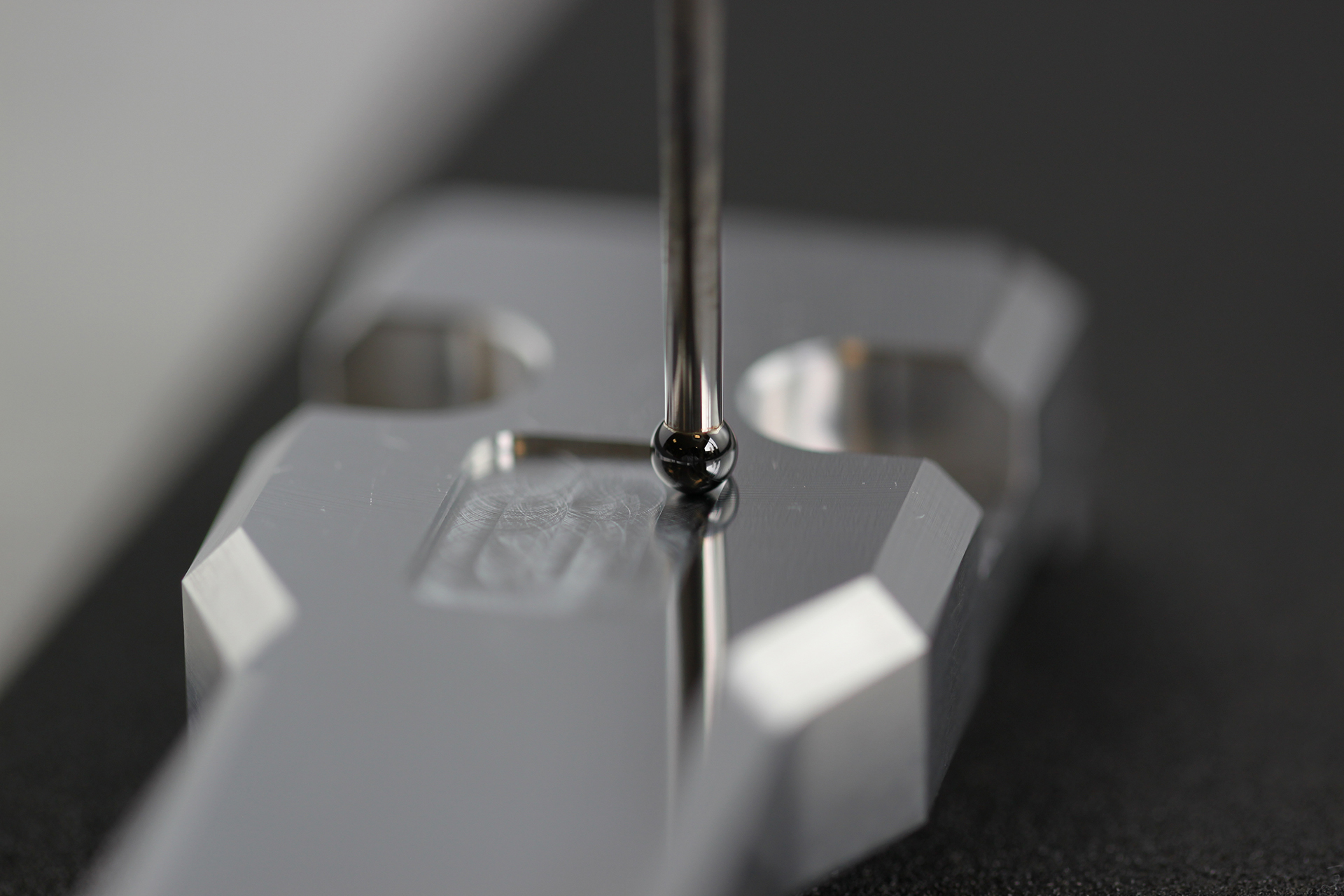

Gyémántbevonatú tapintók
Anyagfelrakódásmentes mérésA gyémántbevonatú tapintók egy gyémánt bevonattal ellátott kerámiagömbből épülnek fel. Az ilyen tapintók különösen alkalmasak puha anyagok szkennelésére. A gyémántfelület biztosítja, hogy semmilyen munkadarabból származó anyag ne rakódjon fel a gömb felszínén. A gyémántbevonatú tapintók további előnye, hogy körkörösségi pontosságuk kiemelkedő (150 nm alatti), ennélfogva nagyobb precizitást nyújtanak lényegesen alacsonyabb áron. A gyémántbevonatú tapintók DK 1,05, DK 2,05, DK 3,05, DK 5,05 és DK 8,05 átmérőjű kivitelben érhetőek el.
![]({"xsmall":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.100.67.file/monolithic-stylus.jpg","small":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.360.240.file/monolithic-stylus.jpg","medium":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.768.512.file/monolithic-stylus.jpg","large":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1024.683.file/monolithic-stylus.jpg","xlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1280.853.file/monolithic-stylus.jpg","xxlarge":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original.image_file.1440.960.file/monolithic-stylus.jpg","max":"https://www.zeiss.hu/content/dam/iqs/r/services/accessories/cmm1/diamondscan/monolithic-stylus.jpg/_jcr_content/renditions/original./monolithic-stylus.jpg"})

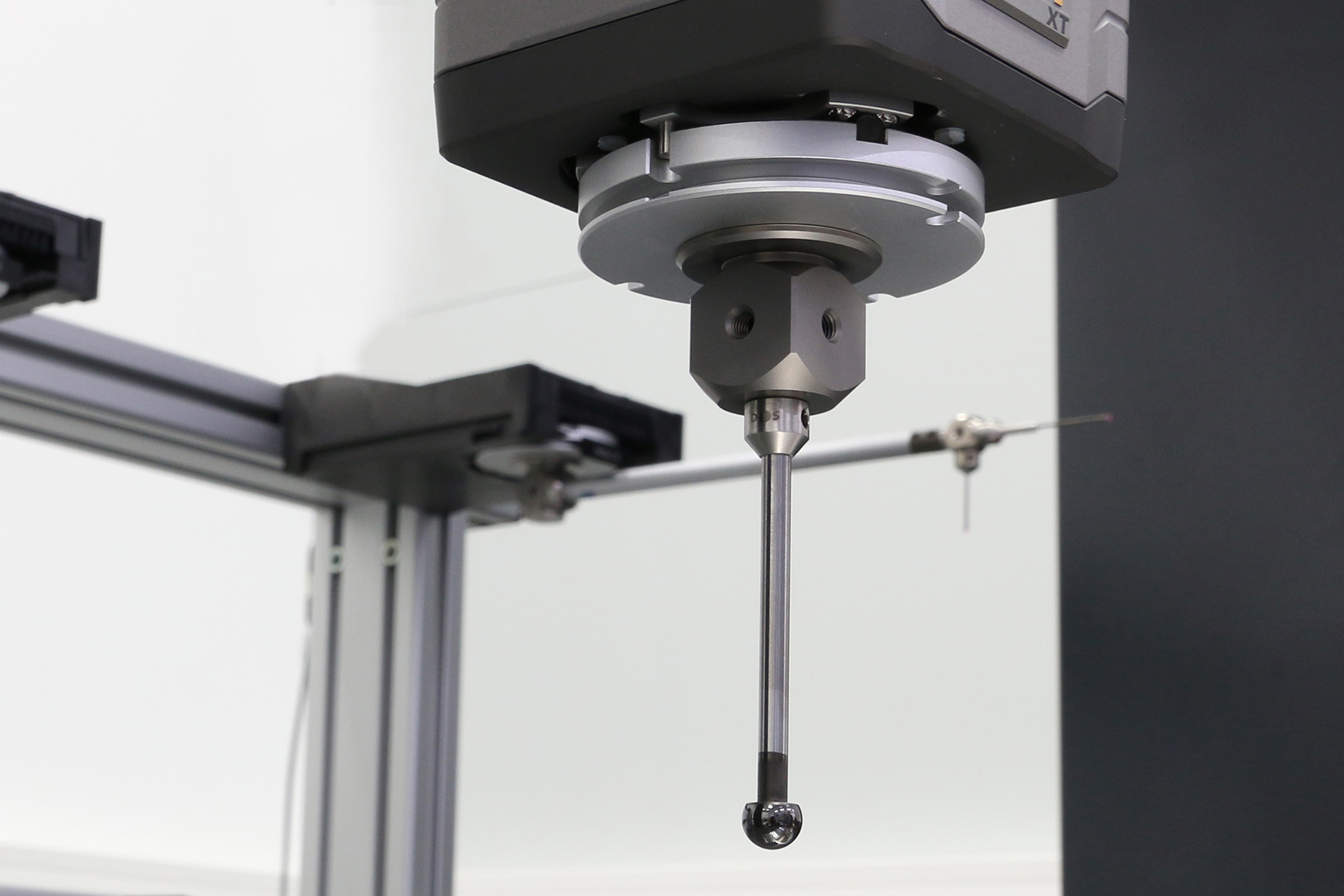

Monolitikus tapintók
Egy darabból álló tapintók gyémánt bevonattalA ZEISS Diamond! mono egy gyémántbevonattal ellátott monolitikus szerkezetű tapintó. Ez azt jelenti, hogy a gömb és a tapintórúd egyetlen egybefüggő darabból áll. Ennek a megoldásnak számos előnye van: Bármilyen átmérővel és bármilyen, műszakilag megvalósítható hosszúsággal gyárthatók. Továbbá nem áll fenn az a veszély, hogy a gömb letörik, mivel a tapintó kialakítása „megaszakításmentes”.
Tömör gyémántból készült, vagy gyémántbevonatú tapintók?
A döntés az Ön egyedi mérési feladatának igényeitől függ. Minden tapintónak megvan a maga előnye.
